RISC-V Pipeline Simulator

A browser simulator that runs RV32I assembly through an explicit 5-stage pipeline and shows, cycle by cycle, where forwarding hides a dependence and where a stall or a flush is unavoidable, with the timing pinned by hand-computed stage traces inside a 63-case suite.

TypeScript

React

Vite

Vitest

Computer architecture

Live: Not deployed yetCode

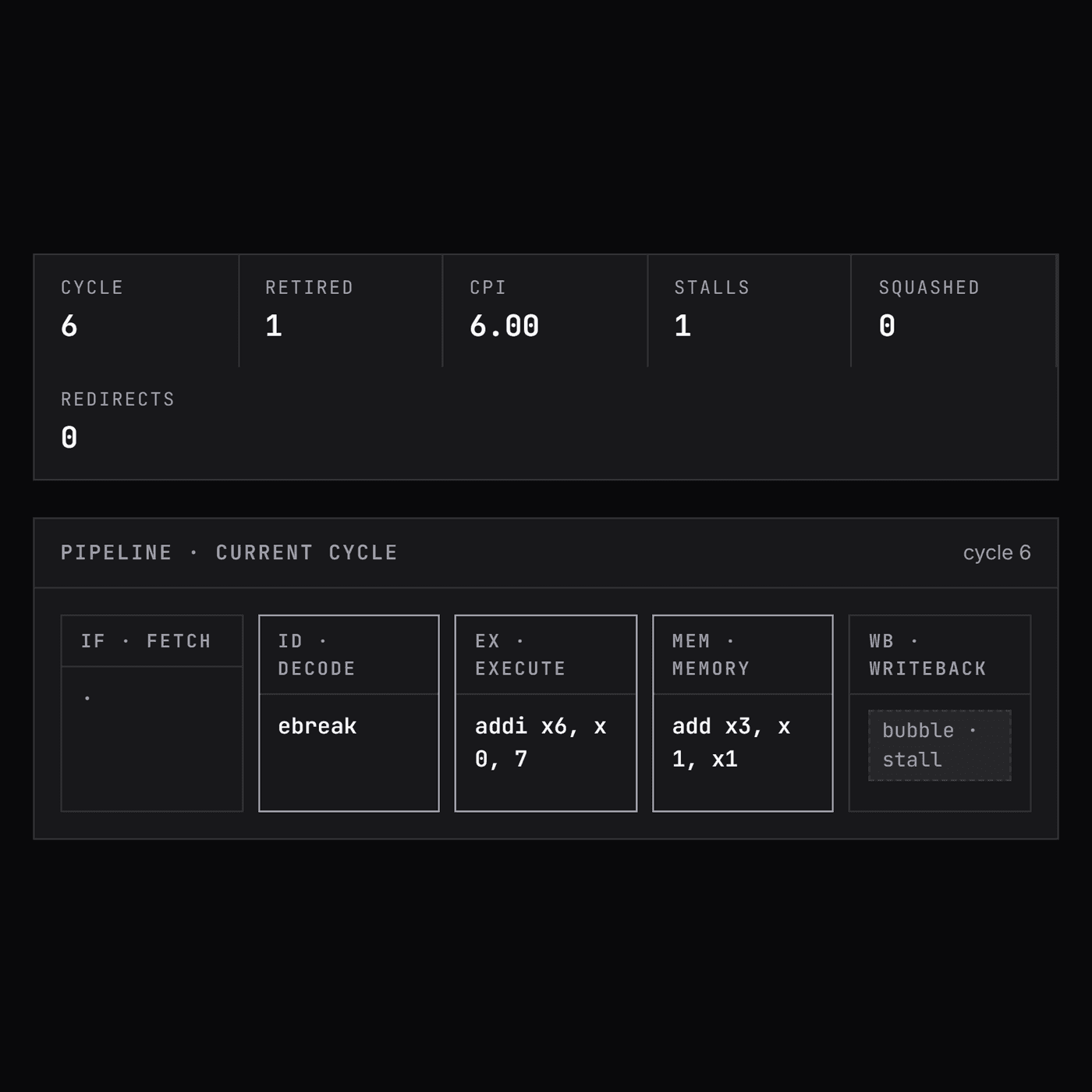

The simulator at cycle 6 of the load-use hazard preset: one stall counted, and a bubble sitting in the writeback stage

Employer signal

What This Project Shows

Most simulators are judged by whether the registers end up right. This one is judged by when things happen: six hand-computed traces assert full stage occupancy cycle by cycle, four of them on the cases that actually bite (the load-use interlock, the chained double stall, lw feeding a dependent sw, and the taken-branch squash are each pinned across every cycle they occupy) so a machine that produced the correct answer on the wrong schedule would fail. That is the standard I want to be held to in architecture work.

Problem

What Needed To Be Solved

A five-stage pipeline is usually taught as a picture: five boxes, arrows for forwarding, and a note that loads cost a bubble. Understanding tends to stop at the picture, because the part that actually bites is timing, which cycle a bubble enters EX, which two instructions die when a branch resolves, whether a value reaches its consumer from the ALU or from memory, and which of those cases the hardware cannot fix by bypassing. A dump of register values at the end of a program tells you none of that, and neither does the diagram.

Approach

How I Built The Solution

I modelled the datapath rather than interpreting instructions and adding penalties afterwards: pipeline registers between every stage, a hazard unit, a forwarding unit, and a step() that runs WB through IF in that order, so a write-first register file falls out of the ordering instead of being special-cased. Then I made timing the thing under test. The engine renders each cycle as an "IF ID EX MEM WB" string with tokens for a squashed instruction, a stall bubble and a flush bubble, so a test can assert eight consecutive cycles of stage occupancy in a form a reviewer can read in a diff. Whole programs are checked against a closed-form cycle count computed by hand, not against a recorded snapshot. The engine itself is UI-free (its barrel exports the simulator, the assembler, the trace helpers and the ISA predicates, and no React import appears anywhere beneath it) so the visualiser consumes the model and has no way to fudge the timing it draws.

Outcome

What It Demonstrates

The repo is public and holds the engine (1,261 lines across six files in src/engine), the stepping UI with preset programs, and 63 Vitest cases spread across the assembler, per-instruction semantics, hazards, control flow and whole programs. The whole repo is one commit dated 2026-07-12, authored by me with a Co-Authored-By trailer: a one-day AI-assisted build, so what it evidences is the machine and the suite that pins it rather than a long build history. There is no live URL yet: GitHub Pages is not serving it and there is no CI workflow, though Vite's base is already set to './' for a static subpath. The scope is narrow on purpose: word-only memory, no M extension, no CSRs, no branch prediction, and an assembler that stops at decoded instruction records rather than emitting 32-bit machine words. What it demonstrates is the discipline: choosing a microarchitectural convention, writing down why, and then testing the awkward consequence of it at cycle granularity instead of checking that the program printed the right number.

Technical Signals

RV32I microarchitecture

Hazard detection and forwarding

Branch resolution and pipeline flush

Cycle-exact test design

Two-pass assembler

Assembler error diagnostics

Implementation Notes

Ran writeback before decode inside a single step(), which makes the register file write-first: a producer three instructions ahead needs no forwarding path at all. The test for that case asserts the forwarding event list is empty rather than merely checking the value, so the convention is pinned and not just observed.
Searched EX/MEM before MEM/WB when forwarding, so the youngest producer wins when two in-flight instructions target the same register: the classic bypass-priority bug. Two back-to-back writes to x1 followed by add x2,x1,x1 must produce 4 rather than 2, and the assertion checks that every forward recorded in that cycle names the younger producer.
Excluded loads from the EX/MEM bypass deliberately, with the reasoning written into the source: the interlock has already stalled any distance-1 consumer of a load, so the value has to arrive from MEM/WB. Without that exclusion the machine would forward a load's address computation as if it were the loaded data. That interlock is also the machine's only stall source, and the engine argues the consequence in the source instead of guarding it at runtime: a stall needs a lw in ID/EX and a redirect needs a taken branch in ID/EX, so the two can never be raised in the same cycle, which is why the redirect is allowed to overwrite the ID/EX latch unconditionally.
Latched store data in EX from the forwarded rs2 operand, so this datapath has no MEM-to-MEM path at all and a load feeding a dependent store costs a bubble exactly like a load feeding an add: a real cost, stated in the engine header and pinned by a full trace.
Resolved branches in EX under predict-not-taken: a taken branch or jump squashes exactly the two younger in-flight instructions and redirects fetch for a 2-cycle penalty, while a not-taken branch costs nothing. The redirect event carries the target and the squash count, so the UI and the tests read the same record.
Wrote a two-pass assembler over 32 executable ops and 17 pseudo forms that collects every error instead of stopping at the first, and reports each with a 1-based line and column that the tests assert to the exact caret rather than by substring: line 1 column 9 for an unknown register, line 1 column 16 for an out-of-range immediate. It range-checks branch (-4096..4094) and jal (-1048576..1048574) offsets in the second pass, expands li with a round-to-nearest lui+addi split that collapses to a single addi or a single lui when the constant allows, and suppresses the entire instruction list when any error exists, so a partially assembled program can never be run.
Gave each fetched instruction a dynamic-instance id that survives a stall, so a stalled instruction occupies one row of the pipeline chart across both cycles instead of appearing twice. The chart is built purely by replaying history snapshots and windows to the last 48 cycles, which the shipped fibonacci preset already exceeds at 78 cycles.
Surfaced faults as structured records rather than exceptions: a misaligned load, store or fetch yields a RuntimeError carrying the offending instruction's index, sets the halt reason to 'error' and renders as a banner, and capped run() at 100,000 cycles, 50,000 from the UI, so a pasted infinite loop halts with a hint instead of hanging the tab.

Evidence From Source

The case most hand-written 5-stage simulators miss

A load feeding a dependent store. Because store data is latched in EX, sw's rs2 read is a genuine use and lw to sw costs a bubble exactly like lw to add. That only comes out right if the hazard unit reasons about what each instruction format reads rather than about ALU operands, and if rs2 forwarding is wired to the store-data port as well as the ALU port. The test does not check the stored word and stop: it pins all seven cycles of stage occupancy, including which cycle the bubble sits in.

Timing checked against arithmetic, not a snapshot

Three whole programs are asserted against a closed-form model (retired instructions, plus 4 to fill the pipe, plus 1 per load-use stall, plus 2 per taken transfer) so the simulator and a hand analysis have to agree. fib(10) = 55 in 78 cycles from 56 retired and 9 redirects; a four-word memcpy in 42 cycles at CPI 1.5; sum 1..10 in 55. A snapshot test records whatever the machine did; this one fails if the machine is systematically wrong. The same file tests reset() as a replay property rather than a state check (restore the initial memory image, drop every write, rerun the program, and assert an identical cycle trace and register file) which is what makes the UI's reset button trustworthy.

The interaction that would wedge the pipeline

ebreak stops fetch the moment it is fetched, not when it retires, so an ebreak fetched down a wrong path and then squashed by a taken branch would leave fetch halted forever. The redirect path clears that flag, and the test proves both halves: the program still reaches its real ebreak and halts there, and exactly one instruction is flushed rather than two, because fetch had already stopped and the IF slot was empty when the branch resolved.
