GPU Compute Harness

Vulkan Compute Lab

A C++20 harness for writing GPU compute shaders and seeing them immediately. There is no graphics pipeline anywhere in the project, compute writes an offscreen storage image that is blitted straight to the swapchain, and GLSL is compiled to SPIR-V at runtime, so saving a .comp file swaps the pipeline live. Five shaders ride on it, including a 3D N-body galaxy you can fly into, a progressive path tracer, and a 32,768-agent flock.

C++20

Vulkan

GLSL

SPIR-V

CMake

Live: Local native buildCode

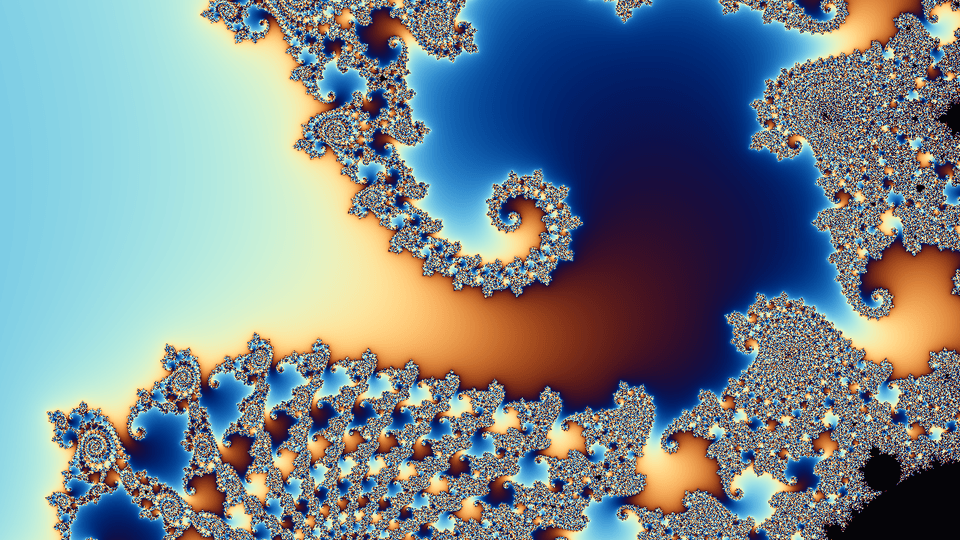

Deep zoom into the Mandelbrot set rendered by a Vulkan compute shader, showing an intricate blue and orange spiral

Employer signal

What This Project Shows

This is the project where I work directly against an explicit low-level API with no engine underneath it: device and queue selection, descriptor sets, image layout transitions, and multi-frame synchronisation are all mine to get right. It is also the clearest evidence of how I debug. Every hard bug in it was found by deriving the quantity that was wrong (an interpolation invariant, a floating-point conditioning bound, a rotation curve, a conserved angular momentum, an IEEE corner case) rather than by tuning constants until the picture looked right.

Problem

What Needed To Be Solved

The standard route into Vulkan works through render passes, framebuffers, vertex buffers, and a graphics pipeline before a single pixel appears, and none of that is needed to run a compute shader. I wanted the shortest honest path from 'the GPU executes my code' to 'I can see it', and then for the shader, not the C++, to be the thing I iterate on.

Approach

How I Built The Solution

Cutting the graphics pipeline is what gets a dispatch on screen; the rest of the project is about what that buys. Shaders are compiled by glslc at runtime rather than at build time, which is what makes live reload possible, and from there the harness became general by letting the shader header declare what kind of thing it is: a plain pixel shader, an `//!nbody` particle simulation that expands into four passes, or an `//!accumulate` progressive renderer that keeps a persistent float image across frames. The C++ never learns what any individual shader is doing: it reads the header, sizes the buffers behind it, and dispatches. That is also the constraint the rest of the design answers to: the file being edited at runtime is the file that decides what the host does, so anything the header invites you to change has to stay correct when you change it.

Outcome

What It Demonstrates

The three simulation shaders were measured on the machine it was built on: an RTX 2080 SUPER at 1280x720, where the galaxy holds about 79 fps at 65,536 bodies and about 21 at 131,072, and the path tracer converges at roughly 310 samples per second. The flock is where the neighbour cull shows up as a number: 4x the pair interactions costs about 2.3x the frame time (1.1e9 pairs per step at about 95 fps, 4.3e9 at about 42) because only around 3.5% of pairs fall inside even the widest rule radius. Verification is Vulkan validation layers enabled in Debug builds plus that headless capture path, which is the designed mechanism rather than a leftover: the renderer gets checked by measuring its own output instead of by looking at a window. What it does not have is a test suite: there is no test directory and no CI, and four static_asserts on the push-constant layout are the only compile-time checks in the project. Every figure above is a frame rate rather than a GPU dispatch time, because timestamp queries are on the list and not implemented; gravity is exact all-pairs with no tree, so this is deliberately a tracer galaxy and getting to millions of bodies needs Barnes-Hut or a particle-mesh solver; and both entry points are PowerShell against the Windows SDK layout, so it is Windows-only in practice: nothing in the repo indicates a Linux or macOS run, and portability is untested. What generalises is the habit: absolute input values are safe to read and dangerous to re-anchor, an invariant that must hold throughout an animation should be interpolated in the space where it is affine, and a rendering artifact is usually a numerics bug in costume.

Technical Signals

Vulkan 1.3

C++20

Image layout transitions and barriers

Semaphore and fence synchronization

Runtime SPIR-V compilation

Floating-point precision analysis

Shared-memory tiling

N-body simulation

Agent-based simulation

Progressive path tracing

Implementation Notes

Built the compute-to-present path by hand: instance and debug messenger, device and queue selection, a present-only swapchain, descriptor sets, compute pipelines, and the layout transitions and pipeline barriers that carry a frame from UNDEFINED through GENERAL and TRANSFER_SRC to PRESENT_SRC. The final move is a blit rather than a copy because the storage image is R8G8B8A8_UNORM and the swapchain is usually B8G8R8A8_UNORM: only a blit converts formats, and a copy would silently swap red and blue. Recreating the swapchain leaves every frame target back in UNDEFINED while the capture path copies from the last submitted target assuming TRANSFER_SRC_OPTIMAL, so the frame loop reports 'did not render' when it recreated and that return value gates the capture.
Gave each frame in flight its own storage image, and keyed the present semaphores to the swapchain image rather than the frame index. Sharing one target lets frame N's dispatch overwrite pixels frame N-1 is still blitting; present consumes its semaphore asynchronously, so a frame-indexed one can still be pending when that slot comes round again.
Made hot reload survive failure: a shader that does not compile prints the glslc diagnostic and leaves the previous pipeline running. A UTF-8 byte order mark turned out to defeat that (glslc does not skip one, so #version goes unrecognised and the error that comes back points at built-in declarations instead of the real problem) so the compiler now strips the BOM into a temporary copy, and rewrites the diagnostic path so it names the file being edited rather than the temp file. The directive parser had the same shape of failure, and that one shipped: it matched `//!nbody` wherever the token appeared, so a header describing its own directive in prose parsed as the directive, yielded a count of zero, and dropped the simulation silently onto the plain pixel path. A directive now has to open its line and end at the match: the second rule so that `//!camera3dish` is ignored rather than quietly selecting a different mode.
Defined the host/shader ABI as one 128-byte push-constant block shared by every mode, with shaders declaring only the prefix they use. The camera basis is float[4] rather than vec3 because std430 gives a vec3 16-byte alignment and stride anyway, so a vec3 on the shader side would pad silently and desynchronise the two structs; four static_asserts pin the size, the alignment, and the offsets of the camera position and sample counter. 128 bytes is exactly the push-constant budget every Vulkan implementation must provide, so the block needs no capability check.
Made a `//!nbody <count>` header switch the app onto a four-pass path (seed, integrate, render, tonemap) all compiled from one source file with -D defines so the whole effect still reloads as a unit. Seeding is a GPU dispatch rather than a host upload, which means the initial conditions are shader code too, and editing physics constants reloads the pipelines while keeping the particles, so the disk changes behaviour in place.
Wrote the all-pairs gravity sum with shared-memory tiling, 256 bodies per workgroup tile. Out-of-range invocations cannot return early or the workgroup would diverge at a barrier, so they run the loop against a harmless zero-mass body; padding entries carry mass 0 and self-interaction has distance 0, so both fall out of the accumulation without a branch.
Put a second simulation on the same four-pass path: 32,768 flocking agents running separation, alignment and cohesion with smooth distance falloff against every other agent, plus camera avoidance, so flying into the flock parts it around you rather than through you. The neighbour cull compares against the widest of the three rule radii rather than cohesion's, because culling at cohesion's radius is only correct while cohesion happens to be the widest, and the shader header invites editing those radii: the obvious version would have silently truncated a rule with no error.
Added progressive accumulation behind `//!accumulate`: one sample per frame into a persistent RGBA32F image, displayed as a running mean. It is forced to a single frame in flight, because two submissions read-modify-writing one shared image is a race that no barrier inside a command buffer can fix, barriers do not order work across submissions, and the sum is fp32 rather than fp16 because a half-float running total stops growing once the increment falls below its own ULP.
Wrote a dependency-free PNG encoder (deflate framing, CRC32, Adler32) behind --capture, --frames and --exit-after-capture with explicit --center and --zoom framing, so the renderer can be verified and documented numerically without a human watching a window.

Evidence From Source

A UI bug that was really a question about interpolation

Zooming lurched toward the cursor mid-gesture. The cause was that pan and log-zoom were eased independently, so 'keep the point under the cursor fixed' held at the two endpoints of a scroll and nowhere in between. The fix is not a damping constant, it is a change of state representation: store the view as (centre, scale = 1/zoom) and ease both with the same factor. The anchor condition centre == anchor - uv * scale is then affine in scale, so if both ends of a linear interpolation satisfy it, every intermediate frame satisfies it identically. Taking the anchor from the displayed view rather than the target view is what puts the start of the ease on that line. The invariant is written on the Navigation struct so the next person to touch the smoothing knows what they are allowed to break. An earlier bug in the same input path had the same kind of answer: the mouse uniform was fed the window centre until a button went down and the cursor position afterwards, so pressing the mouse teleported the image. Separating the two quantities (mouse is the raw pointer, read and never re-anchored, while centre and zoom accumulate from cursor deltas) makes a press contribute exactly zero by construction rather than by a guard.

A limit derived rather than picked

The shader computes p = centre + uv * scale, so adjacent pixels differ by scale/height; once that step falls below the float32 ULP of the coordinate itself (|p| * 2^-23), a whole neighbourhood collapses onto one representable value and the view can only move in lattice steps, it snaps rather than slides. The zoom ceiling therefore comes out of the ULP relation, height * 0.3 * 2^-23, about 38,800x at 720p: rather than out of a number that looked safe, and the commit that added the cap records the regimes the relation predicts: clean at 30,000x, visibly stepped at 100,000x, coarse mush at 300,000x. The 0.3 is an explicit assumption about how far the shipped shaders' coordinates stray from the origin, which is why --max-zoom overrides it and --max-zoom -1 removes it. Going deeper is a precision problem and not a tunable: it needs fp64 coordinates or perturbation theory against a reference orbit, and neither is implemented.

Rendering artifacts diagnosed as physics

Making the galaxy 3D reintroduced an exploding core. Seed velocities balanced on the spherical radius when centripetal balance for an in-plane orbit is set by the cylindrical one: a particle at R = 0.002 sitting 0.018 above the plane was handed v_c = 0.31 when it needed 0.012, so the core launched itself outward as an expanding ring. The 2D version could not have had that bug: with no disk thickness the two radii were the same number. It was localised numerically rather than by eye: the app renders and screenshots itself headlessly, with --center and --zoom for reproducible framing, so an expanding ring is a radial brightness profile whose peak marches outward frame over frame rather than a picture that looks wrong. An earlier version of the same class had seeded from ideal sqrt(GM/r) while the integrator applied Plummer-softened gravity, which inside the softening radius is far weaker, and a version before that fragmented into bound clumps because Toomre Q evaluated to about 0.26, well under the Q >~ 1 stability threshold. In each case the picture looked like a shader artifact and the fault was in the dynamics.

A flock that was secretly a galaxy

The first flocking draft was not flocking at all. It was a flat rotating disk with a hollow core, visually indistinguishable from the galaxy shader running beside it. The seed gave every agent a shared tangential velocity about +z, which hands the system global angular momentum at frame 0, and none of the three boids rules can dissipate it: alignment matches headings, so it preserves net rotation rather than damping it, and the flock centrifuges into a mill and stays there forever. The fix is in the seeding rather than the rules: headings are now locally coherent, shared within a coarse 0.075 spatial cell so the flock starts organised into patches instead of as a gas of disagreeing directions, but globally isotropic, so the system carries no net rotation. The shared-swirl term survives at zero rather than being deleted, because the mill is a real attractor of the model and worth being able to reach on purpose.

Bugs caught by reading, before anyone saw them

Three defects in the path tracer and accumulator were found by argument rather than by looking at output. The tracer clamped fireflies before rejecting non-finite samples, and since GLSL leaves min() undefined for a NaN operand while both NVIDIA and AMD return the non-NaN one, min(NaN, clamp) laundered a NaN into a bright finite sample banked permanently into the accumulator. The per-pixel RNG seed XOR-ed three products, which is not injective, and because the sample-index term XORs in a value common to every pixel, a collision recurs identically every frame: two pixels sharing a stream forever is correlated noise that averaging can never remove, measured at 144 permanently aliased pixels on a 1280x720 grid. And the accumulator discarded its sum on every swapchain recreation, but VK_SUBOPTIMAL_KHR alone triggers a recreate and some drivers report it steadily at an unchanged extent, which would have pinned the path tracer at one sample while merely looking noisy.
